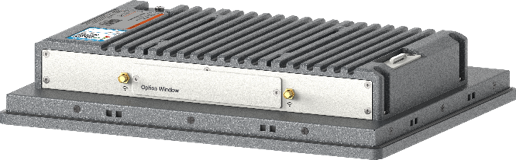

IPC-PANEL-A _RIVIDATA

Key Features：

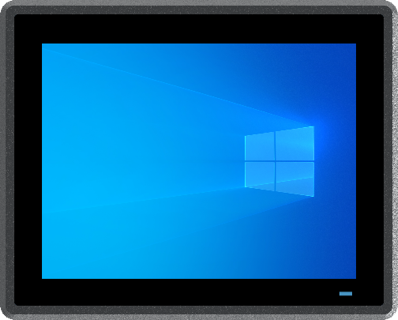

● Compact 12.1” touch panel with IP66 front protection.
● Fanless die-cast aluminium chassis for rugged environments.
● Powered by Intel® Elkhart Lake quad-core processor.
● Wide temperature support down to -30°C (optional).
● Flexible touch input: capacitive multi-touch or resistive options.
● Multiple LAN, COM and USB interfaces for industrial connectivity.

More About This Product：

Category	Specification
Display	12.1" 4:3 screen, resolution 1024×768
Touch	Flat panel, 10-point capacitive (default), 5-wire resistive optional
Protection	Front panel IP66 (sealed with adhesive process)
Brightness	250 nits (default), 350/500/600 nits optional
Temperature Range	Default -20°C to 70°C, optional -30°C to 70/80°C
CPU	Intel® Comet Lake 10th Gen / Rocket Lake 11th Gen Core™ i9/i7/i5/i3, Pentium®, Celeron® (LGA1200)
Memory	1 × DDR4 SO-DIMM 2666/2933/3200MHz, up to 32GB
Graphics	Intel® UHD Graphics 10th Gen, supports HDMI extended display, synchronous/asynchronous touch
Networking	2 × Gigabit LAN: Intel® i219LM, i210AT; onboard Realtek 8111H Gigabit, Wake-on-LAN and PXE boot
Storage	1 × M.2 2280 SATA/NVMe SSD, optional 2.5" SSD or anti-shock HDD
USB	2 × USB 3.2, 2 × USB 2.0 (expandable)
COM	2 × COM: COM1 RS232/422/485 full pin, COM2 RS232 (3-pin)/485 (2-pin), BIOS selectable, expandable, isolation options
Audio	Realtek ALC897 codec, Line-out, Mic-in, built-in 8Ω 2W speaker
Watchdog	1–255 sec system reset
Indicators	Front panel LED: red (standby), blue (on)
Power Input	DC 9–36V lockable, DC jack or 2-pin 5.08mm terminal
Cooling	Fanless, aluminium die-cast chassis
Operating Systems	Windows 10/11, Linux
Environmental	Operating: -10°C to 60°C, Humidity: 5–95%, Vibration: SSD 5Grms, HDD 1Grms, Shock: SSD 50G, HDD 20G
Certifications	CE/FCC
